3M™ EMI Absorber AB7050HF
Select your service to get started:
Pre-Cut Materials
Buy and try our off-the-shelf pre-cut materials with or without adhesive.
Cut to Size
Our materials cut to your specific size — simply enter your dimensions to get started.
Cut to Shape
From simple shapes to assemblies — we can meet all your custom part needs. Upload your CAD file to get started.

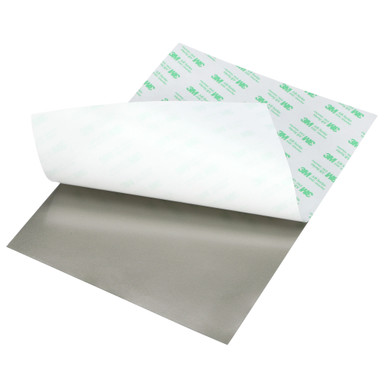

3M™ EMI Absorber AB7050HF is a high-permeability magnetic EMI absorber for near-field applications. It consists of flexible polymer resin loaded with a filler of soft metal flakes that absorb noise into the polymer. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. These sheet type EMI absorbers are excellent for absorbing near-field EMI inside and around electronic devices and assemblies.
- 22 mil (0.55 mm) thick with an acrylic pressure sensitive adhesive and removable liner
- Target absorbing performance from 800 MHz - 2.5 GHz
- Broad operating frequency of 300 MHz to 4 GHz
- Halogen-free*
- Pre-Cut Materials
- Cut to Size
- Cut to Shape
Don't see the right size? Select Cut to Size to add your specific dimensions
Don't see the right thickness? Select Cut to Size to add your specific dimensions
In Stock: Ships in 1 - 2 days
Upload Your CAD | Custom Parts
Experience the fastest die cut quotes in the industry. Upload your CAD file, configure your part, and go.
Simple Shapes
Choose from circles or washers, and easily configure them to meet your needs.
Documents
