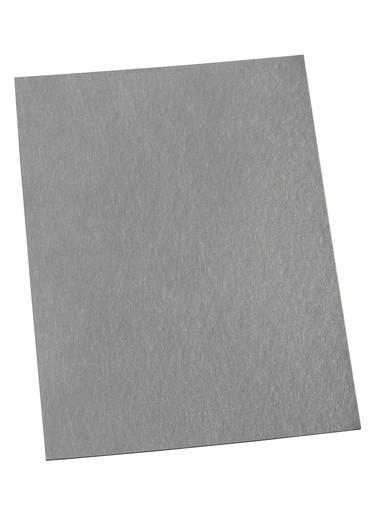

3M™ EMI Absorber AB5100HF
Select your service to get started:
Pre-Cut Materials
Buy and try our off-the-shelf pre-cut materials with or without adhesive.
Cut to Size
Our materials cut to your specific size — simply enter your dimensions to get started.
Cut to Shape
From simple shapes to assemblies — we can meet all your custom part needs. Upload your CAD file to get started.
3M™ EMI Absorber AB5100HF is a magnetic EMI absorber with good attenuation at target frequencies. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 800 MHz to 2 GHz. This sheet type EMI absorbers are excellent for near-field and cavity resonance applications inside electronic devices and enclosures.
- 4.0 mil (0.1 mm) thick with an acrylic pressure sensitive adhesive and removable liner
- Near-field absorber for frequencies from 800 MHz to 2 GHz
- Operating frequency range is 300 MHz - 2 GHz
- Pre-Cut Materials
- Cut to Size
- Cut to Shape
Don't see the right size? Select Cut to Size to add your specific dimensions
Don't see the right thickness? Select Cut to Size to add your specific dimensions
In Stock: Ships in 1 - 2 days
Upload Your CAD | Custom Parts
Experience the fastest die cut quotes in the industry. Upload your CAD file, configure your part, and go.
Simple Shapes
Choose from circles or washers, and easily configure them to meet your needs.
